Syphasfera Set 5
[Enzo Catellani]
Description
The Catellani & Smith Syphasfera Set 5 consists of five complete outdoor floor lamps ready for connection with all necessary accessories. With the Quick Connectors System from Catellani & Smith the five lamps can be connected and plugged together. Only a single power connection is required for installation. All necessary plug connections are included. The set contains:
- One lamp with a height of 60 cm
- one lamp with a height of 75 cm
- one lamp with a height of 105 cm
- two lamps with a height of 135 cm
- an extension cable with a length of 500 cm
- a driver necessary for the lamp operation

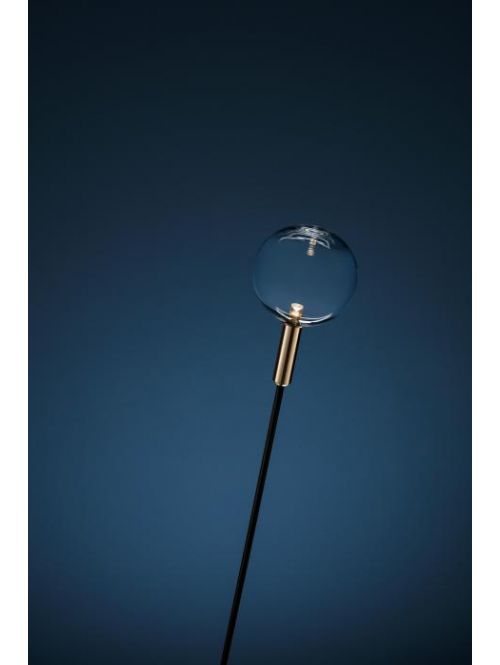

The Syphasfera lamps each have a spherical glass with a diameter of 8 cm. The glass is available in clear or irregular structured. Through the clear glass the light is emitted evenly in all directions. If the glass is irregular, light reflections are generated on the glass when the lamp is switched on. Each lamp can be fixed with its ground spike up to 25 cm into the ground. The heights of the lamps (60 cm to 135 cm) are without ground spike.
The Syphasfera outdoor light is protected with IP44 against splash water on all sides and solid foreign bodies with a diameter of 1 mm and more. Each light rod is dust-tight with the protection class IP65 and protected against strong water jets from any angle. Driver and extension cables are protected against temporary submersion with the IP67 degree of protection. Syphasfera offers further sets of three, four or nine complete lamps. Additionally, a complete single lamp with a height of 60 cm, 75 cm, 105 cm or 135 cm is also offered.
Technique
| Country of Manufacture |
 Italy |
|---|---|
| Manufacturer | Catellani & Smith |
| Designer | Enzo Catellani |
| Year of design | 2018 |
| protection | IP44 |
| Scope of delivery | LED |
| material | brass, glass |
| socket/light fixture | G4 |
| LED | inclusive |
| Colour Rendering Index | 80 |
| Color temperature in Kelvin | 2,700 extra warm white |
| bulb exchange | on site itself |
| system performance | 5 x 1 Watt |
| Total luminous flux in lm | 375 |
| Dimensions | H 60 + 75 + 105 + 2 x 135 cm |
